Product Details
＋

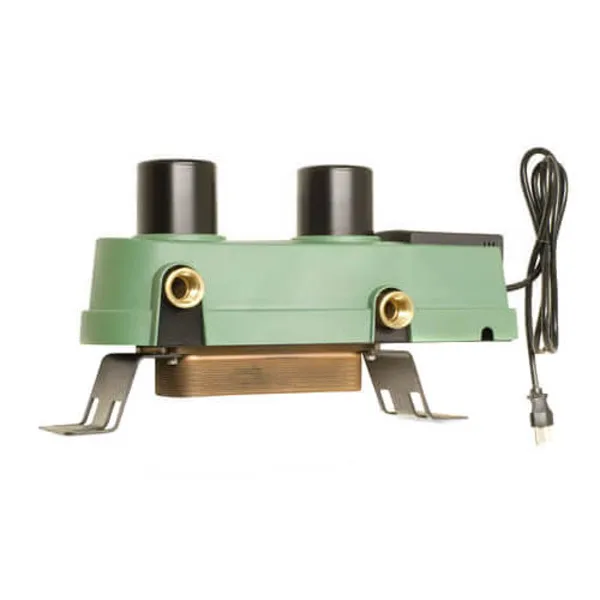

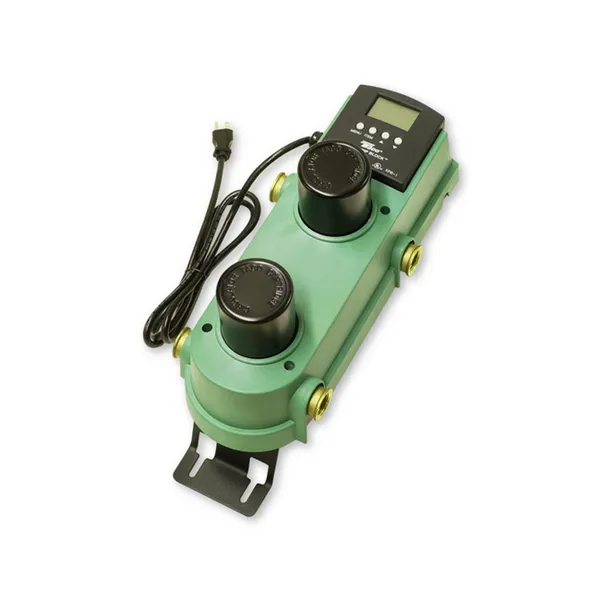

The patent pending X-Pump Block combines a variable speed mixing control, heat source circulator, system circulator, and heat exchanger into a single unit.
Performance Data
Features
Performance Data
- Flow Range: 0 v 7.5 GPM
- Head Range: 0 v 15.5 Feet
- Minimum Fluid Temperature: 32?F (0?C)
- Maximum Fluid Temperature: 185¬F (85?C)
- Maximum Working Pressure: 125 psi
- Connection Sizes: 3/4" NPT Female
Features
- All-in-One Heat Exchanger, Dual-sided Circulators and Mixing Control Package
- Brazed Plate Heat Exchanger Provides Complete Isolation Stainless Steel Easily Removable Double Wall Optional
- Only 4 Pipe Connections Required
- Plug-in Low Voltage Connections
- Solid State Microprocessor Design
- Greatly Decreases Installation Time
- Substantial Space Savings
- Line Cord Included, Hard Wire Option
- Bronze Casing for Open or Closed Systems
- Replaceable Cartridge Design
- Maintenance Free, Wet-Rotor Circulators
- 2 Operation Modes: Outdoor Reset and Setpoint with or without Delta T Limiting
- Main System Pump Contact
- 100% Pump Operation / Control Override Switch
- Automatic Pump Exercise
- Adjustable Reset Ratio
- Warm Weather Shutdown
- Large LCD Display
- Outdoor and 2 Strap-on Sensors included
