Product Details
＋

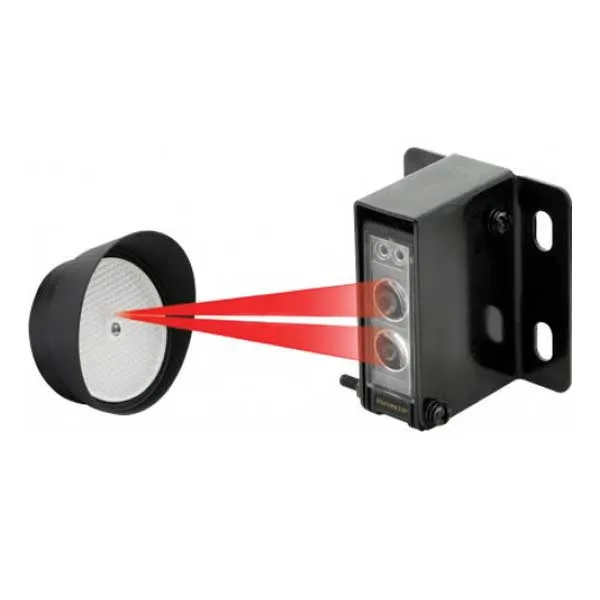

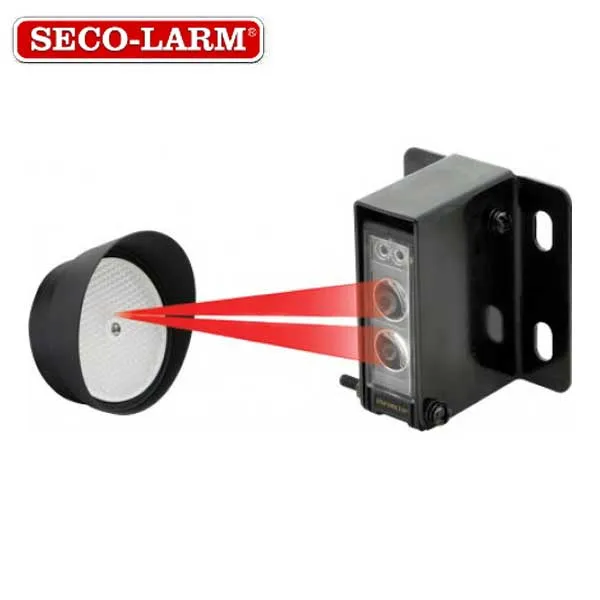

The Reflective Photoelectric Beam Sensor has an adjustable range of up to 45 feet. Perfect for access control applications, automated garage doors or gates.
- Range: 45ft (14m)
- Weatherproof (IP66) construction for indoor/outdoor use
- Pre-wired 6ft (1.8m) cord
- Bracket and mounting hardware included for both sensor and reflector
- Adjustable sensing range
- Compact size
- Monitoring method: N.C., 10kΩ resistor
- Typical Applications
- Sensor for garage doors, outdoor gates or overhead doors
- Industrial automation sensor to detect objects on manufacturing line
- Entry detection for store fronts
- Assist in measuring parking distance
- Alarm sensor
Specifications
| Type | Retro Reflective Photoelectric Beam Sensor |
| Current Draw | Standby- 70mA@12VDC, Active- 55mA@12VDC |
| Sensing Range | 0.5' to 45' (0.2 - 14m) |
| Operating Voltage | 12-30VDC/AC 60Hz, 100mA |
| Reaction time | 10mS |
| Light Source | IR LED |
| LEDs - Red | Power on |
| LEDs - Yellow | Alignment |
| Alarm Output | SPDT Relay Output (NO/NC/COM) |
| Switching Capacity | 2A@30VAC/VDC |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Enclosure | IP66 Waterproof |
| Mounting Brackets | Included |
