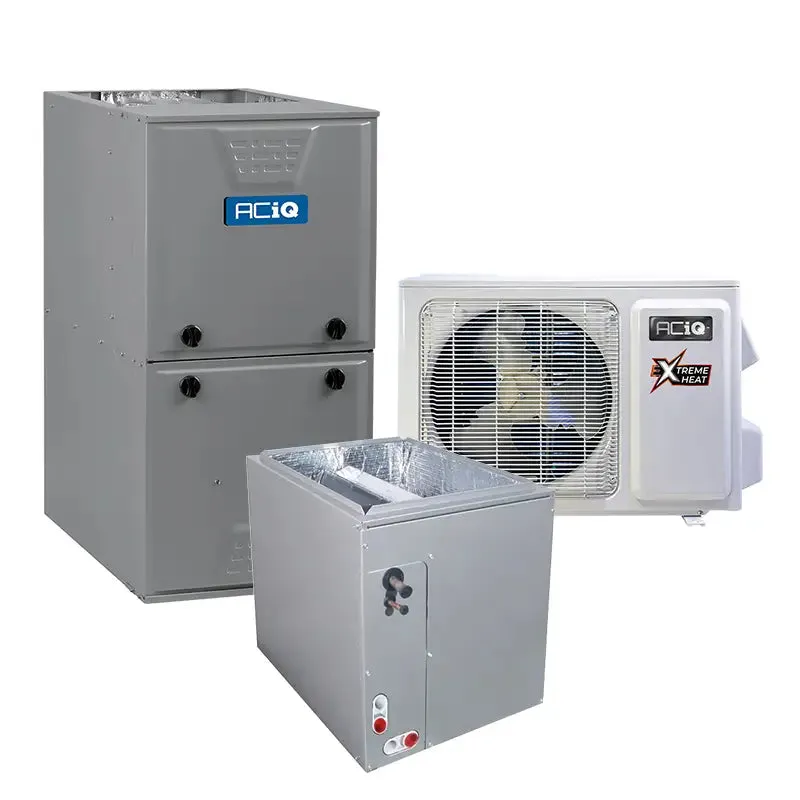

Hybrid 3 Ton 15.2 SEER2 96% AFUE 80,000 BTU ACiQ High Efficiency Heat Pump and Gas Furnace System | Inverter | Extreme Heat
An ACiQ combination system is a great choice to keep your home warm all season long. With tons of extra features and a great price, the N95ESN0801716A is a perfect choice for heating.
All ACiQ models come with a 10 year parts warranty and 20 year heat exchanger limited warranty. Not intended for use in mobile homes.

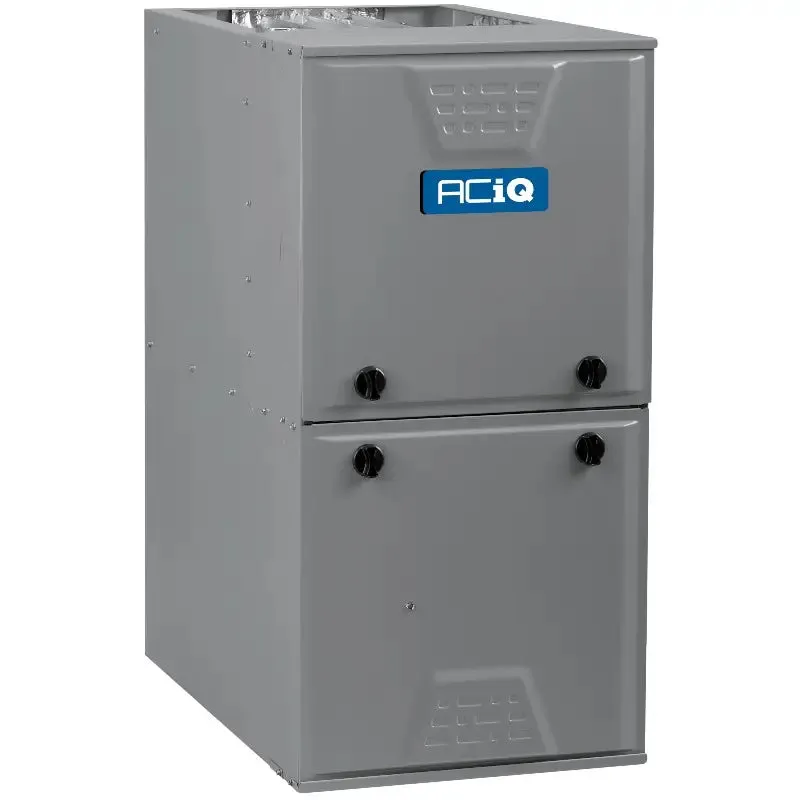

80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
Designed to be a high-efficiency furnace, the ACiQ N95ESN0801716A is a money saving unit to provide heating throughout even the coldest months of the year. With its multi-positional design, this unit is a good all-around choice for nearly any application.
Quick Facts:
- 80,000 BTU, 96% AFUE natural gas furnace
- Generally suitable for up to an average-sized house in ideal applications
- Multi-positional design can be installed in the upflow, downflow, or horizontal orientations
- Single stage burner with a multi-speed blower
- Field-convertible to propane with an optional LP kit
- On board self-diagnostics
- Energy Star certified
80,000 BTU, 96% AFUE
The ACiQ N95ESN0801716A has an input of 80,000 BTU. With an efficiency of 96%, this means that the furnace has an output of 76,800 BTU. The 96% AFUE also means that for the gas going into the furnace, 96% of it is used to heat your home while only 4% is lost out of the flue piping and lost to normal furnace operations. All furnaces at this efficiency (90% and above) requires plastic/PVC flue venting, and if metal flue venting is required for your installation, an 80% efficient furnace would be needed instead. While this unit uses natural gas as fuel out of the box, we also have an LP conversion kit, available at an additional cost. Please note that this furnace is not Ultra Low NOx compliant and if shipped to California may be subject to a mitigation fee.
Warranty
ACiQ offers 10 year parts warranty and lifetime (20 year) heat exchanger limited warranty. Please note that in order for these warranties to be upheld, installation following your state and local codes are required, along with timely registration through the manufacturer.
Installation and Durability
With its ability to be installed in any configuration, upflow, downflow, or horizontal, the ACiQ N95ESN0801716A is very versatile in application potential. The unit has a durable outer casing that can withstand wear-and-tear through its entire lifetime, providing the peace of mind that your home will stay comfortable year-round. Please note that this furnace is not intended for use in a mobile home.
Quiet Comfort
Every ACiQ furnace is designed to keep your family warm and comfortable year after year. Whisper-quiet ECM blower fans, solid construction with thicker sheet metal and more cabinet insulation give you near-silent operation. From entry level to top-of-the-line, your comfort is the priority.
High Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Multi-speed or Variable Speed ECM blowers come in every furnace. Adding options such as high-efficiency secondary heat exchangers, two stage heating, modulating burners and variable blowers all can further reduce your energy bills while increasing comfort.
Longer life, longer warranty
Thicker sheet metal, more cabinet insulation and aluminized steel heat exchangers reflect the highest build quality you can get. Every furnace is backed by ACiQ’s 10 year, 20 year or lifetime (depending on model) heat exchanger extended warranty with online registration.

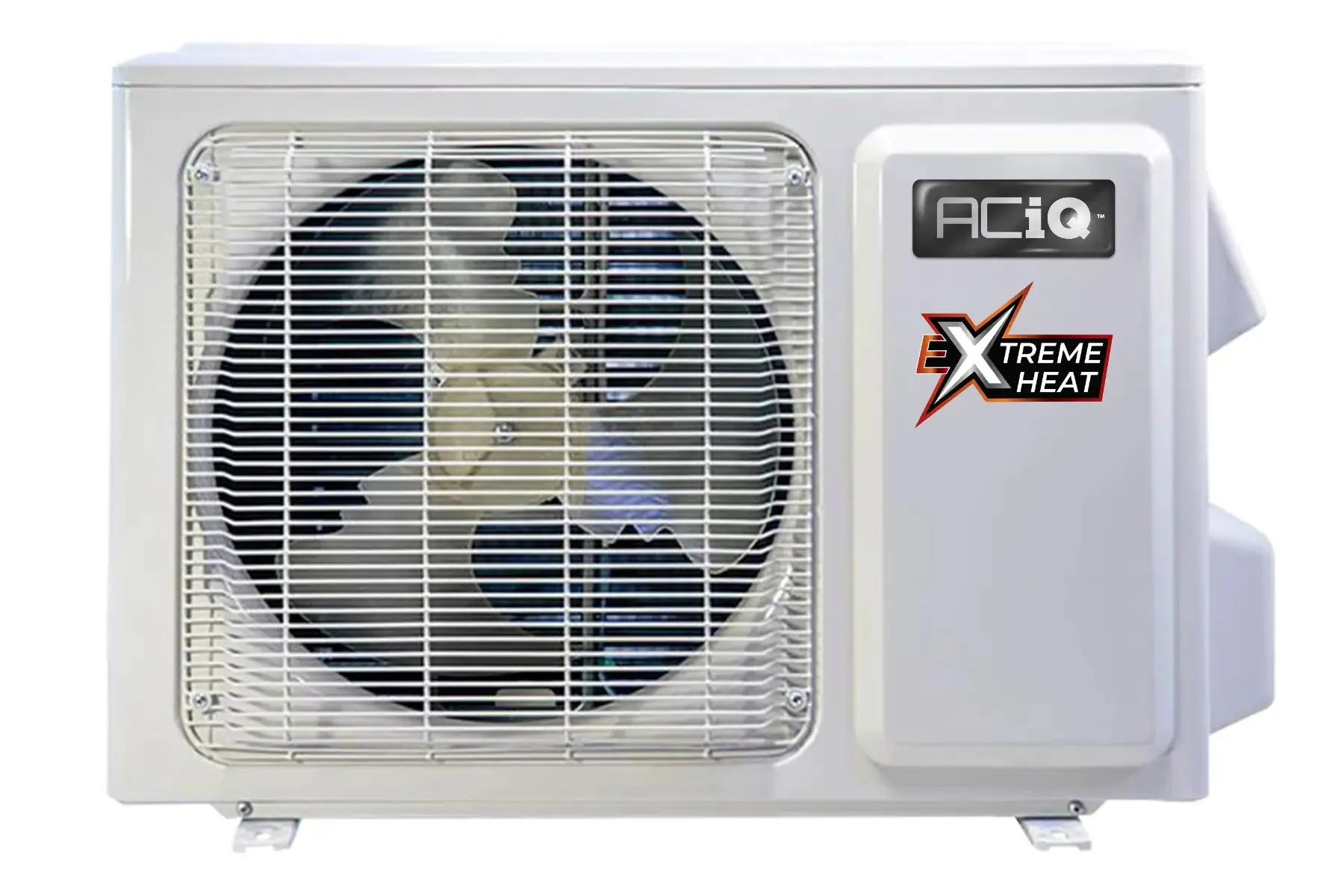

ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat
With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPC will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.
Features:
- Inverter Condenser: Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
- Learning system: This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
- Size for heat: The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.
-
Extreme Heat Technology: Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
- Quality Construction: State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
- Highest Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
- Longer life, longer warranty: Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This product is protected by ACiQ's 7 years parts, and 12 years compressor warranty.
Quick Facts:
- 12,000 BTU to 36,000 BTU variable output based on demand
- Inverter heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 85°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads

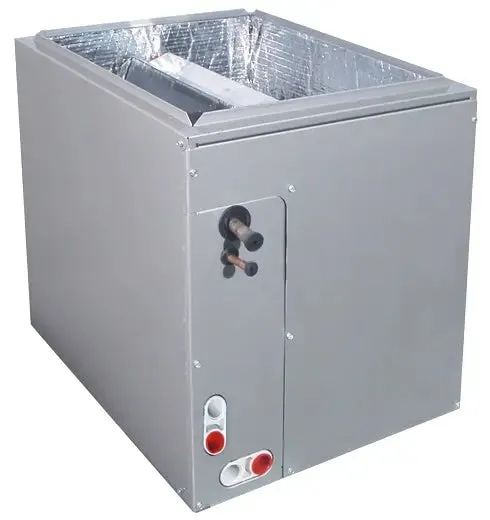

ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
ACiQ takes pride in its ability to provide a high-quality system, including all system components.The ACiQ-36-ACL multi-positional A-coil stands out as a superior choice for various applications, ensuring optimal unit efficiency through its factory-integrated TXV kit, maximizing energy optimization. With its outstanding performance features and versatile orientation options, this coil becomes the ultimate solution for achieving unmatched comfort in your home.
Quick Facts:
- 3 ton multi-positional evaporator coil
- Works in almost any upflow, downflow, or horizontal system setup
- Compatible with both AC-only and heat pump condensers
- Factory-installed TXV kit for enhanced energy optimization
- Sturdy and compact design
3 Tons
The ACiQ-36-ACL is rated for up to 3 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser. Please note that this item cannot operate independently from a compatible condenser and blower or furnace, each available at an additional cost.
What's Included:
- 1x 80,000 BTU 96% AFUE Single Stage Multi-Positional ACiQ Gas Furnace
- 1x ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat
- 1x ACiQ 3 Ton 17.5" Width Multi-Positional Evaporator Cased Coil
Furnace Specifications:
| Brand | ACiQ |
| Model | N95ESN0801716A |
| Weight (in lbs) | 146.000000 |
| AHRI Certificate Number | 213148760 |
| Equivalent |
|
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 80,000 |
| Blower Motor | ECM |
| Maximum CFM | 1665 |
| Configuration | Upflow/Downflow/Horizontal |
| Energy Star | Yes |
| Burner Stages | Single |
| Fuel Type | Propane, Natural Gas |
| Height | 35" |
| Width | 17.5" |
| Depth | 29 1/2" |
| Warranty | 20 Year Heat Exchanger / 10 Year Parts with Online Registration |
| Resources |
|
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment. |
| Proposition 65 Warning | Yes |
Central Heat Pump Specifications:
| Brand | ACiQ |
| Model | ACiQ-36-HPC |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 166.000000 |
| AHRI Certificate Number | 213500937 |
| HSPF | 10.4 |
| HSPF2 | 9.5 |
| Cooling BTU | 36000 BTU |
| Heating BTU | 40000 BTU |
| Maximum CFM | 1082.35 |
| Decibel Level (dBA) | 64 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 18 |
| SEER2 (Efficiency) | 16 |
| EER | 10.5 |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 35 Amps |
| Min. Breaker Size | 30 Amps |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Mini-Split Type | Multi-Positional |
| Min/Max Outdoor Temp for Heating | -22～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Zone Compatibility | Single Zone |
| Ambient Temperature Range | -22～122 |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources |
|
| Proposition 65 Warning | Yes |
Evaporator Specifications:
| Brand | ACiQ |
| SKU | ACiQ-36-ACL-17 |
| Weight | 60.200000 |
| Configuration | Multi-Positional |
| Refrigerant | R410A |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Tonnage | 3 Ton |
| Style | A-Coil |
| Certification | UL Listed |
| Height | 23.5" |
| Width | 17.5" |
| Depth | 21" |
| Warranty | 10 Years Parts Warranty with Online Registration |
|
Resources |
|
| Proposition 65 Warning | Yes |
