Product Details
＋

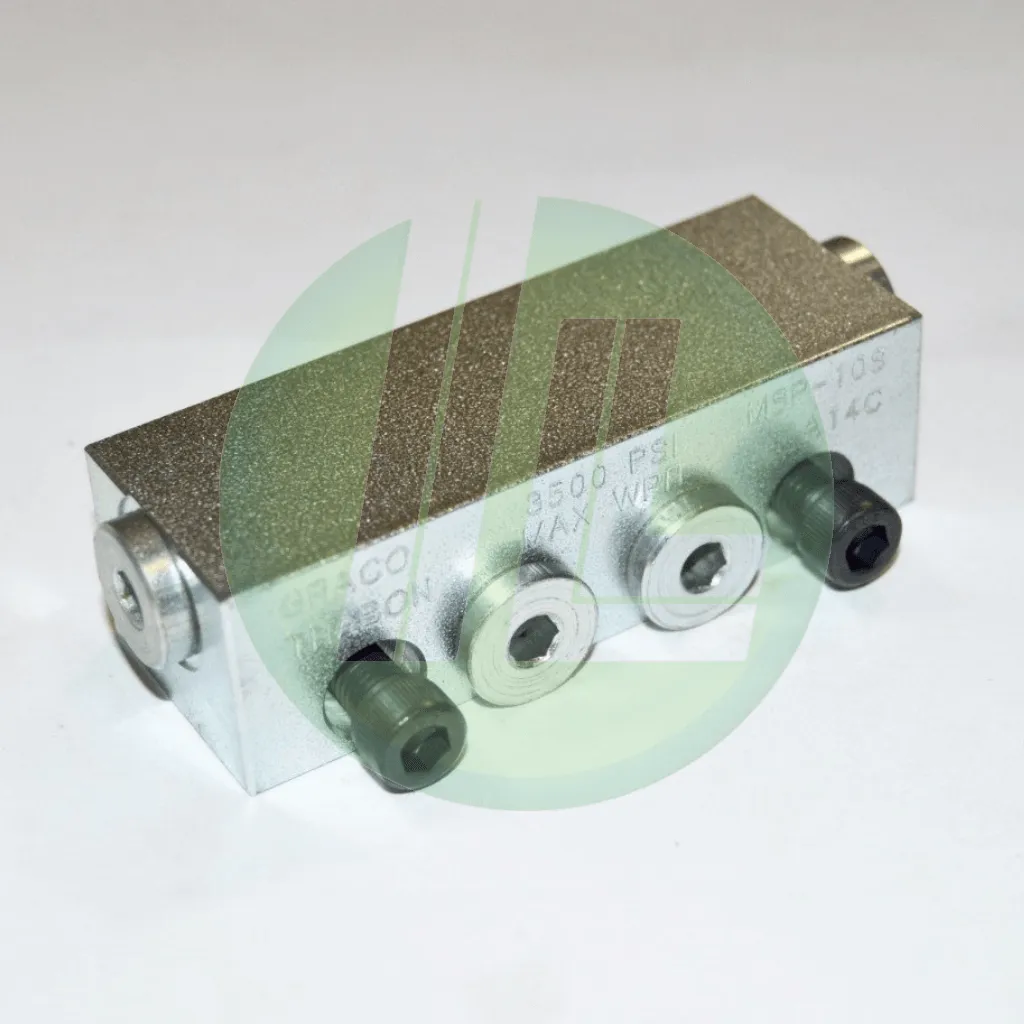

562712 Graco Trabon Modular-Style Series Progressive Single Outlet MSP-10S Divider Valve Block Assembly
* The Trabon MSP Series sets the industry standard for quality, reliability and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
FEATURES:
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines, minimizing labor cost and maximizing your machine up-time
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Built-in outlet check valves ensure accurate lube delivery, every time
- Mobile, industrial, food & beverage, wind and many more usable applications
- Oil/Grease up to NLGI #2
TECHNICAL SPECS:
- Construction Material - Zinc Plated Carbon Steel
- Maximum Pressure - 3,500 PSI (241/bar)
- Max Operating Temp - 350°F (176°C)
- Max Cycle Rate w/Cycle Pin - 60 cycles/min.
- Max Cycle Rate w/o Cycle Pin - 200 cycles/min.
- Product # - 562712
- Displacement in3 (cm3) - 0.020 (0.33)
- Cycle Indication - Electronic proximity switch, magnetic visual indicator
- Fluoroelastomer Seal
- Old Trabon P/N - 106-100-025
