ArcOne AirPlus® PAPR System with Vision Helmet
ArcOne’s AirPlus® Powered Air-Purifying Respirator (PAPR) System is a battery powered system that provides a constant supply of fresh, filtered air over the operator's face. It creates a positive pressure inside the welding helmet, keeping out harmful welding fumes and particulates.
AirPlus Features
- 8-Setting airflow control, minimum flow at 170 LPM
- Constant airflow correction technology
- Visual and audible alarms for low battery voltage
- 14-hour Lithium-Ion battery (at minimum fan speed) charges in 6 hours
- Audible and vibration alarms for low flow (clogged filter) and missing filter
- Ergonomic comfortable belt
- Flexible breathing tube with quick disconnect with fire retardant air-hose cover
- NIOSH 42 CFR Part 84 Approval Number: TC-21C-0947

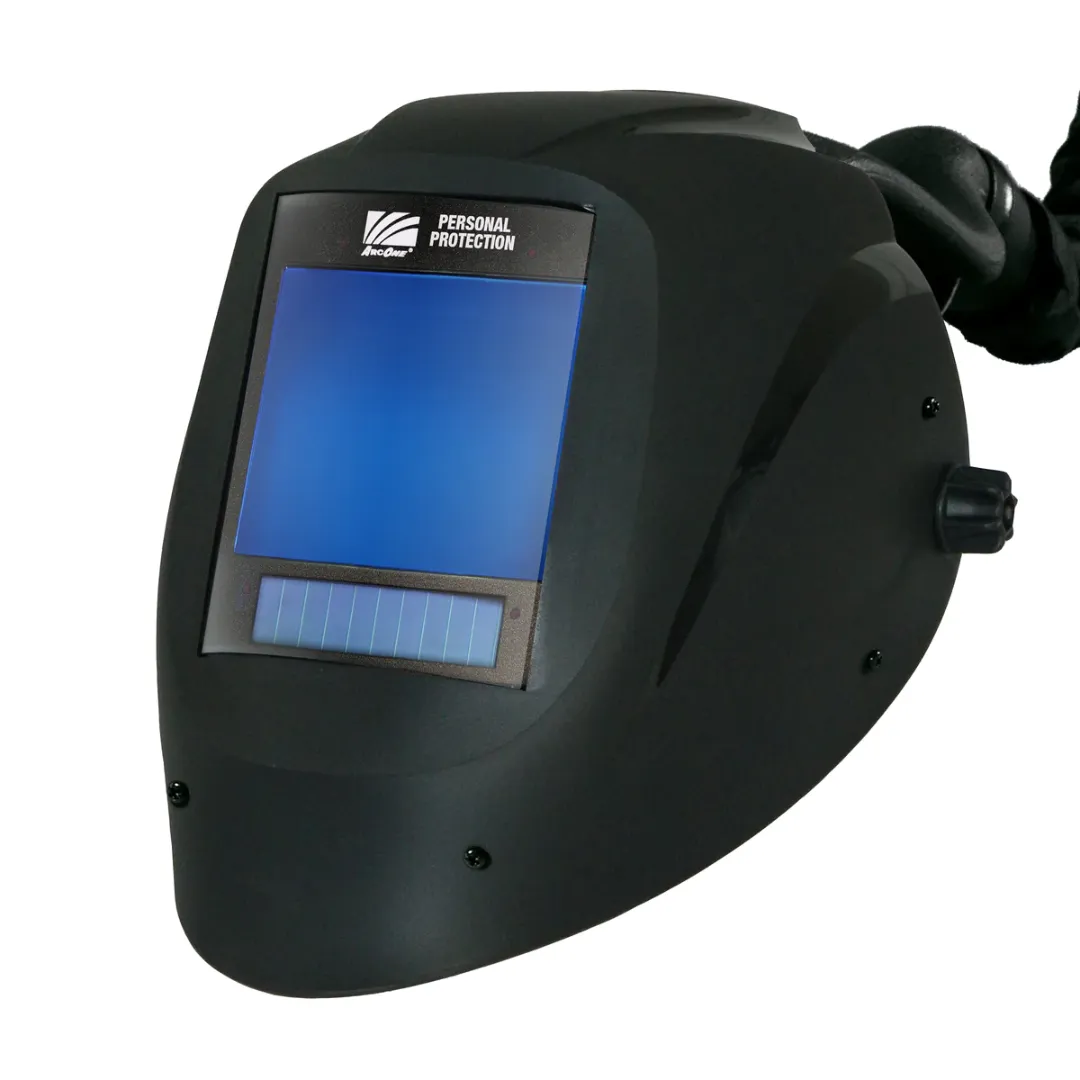

The Vision® head top is the most popular head top used with the AirPlus® PAPR
System. The Vision® Auto-Darkening Welding Helmet is a lightweight, full-coverage helmet.

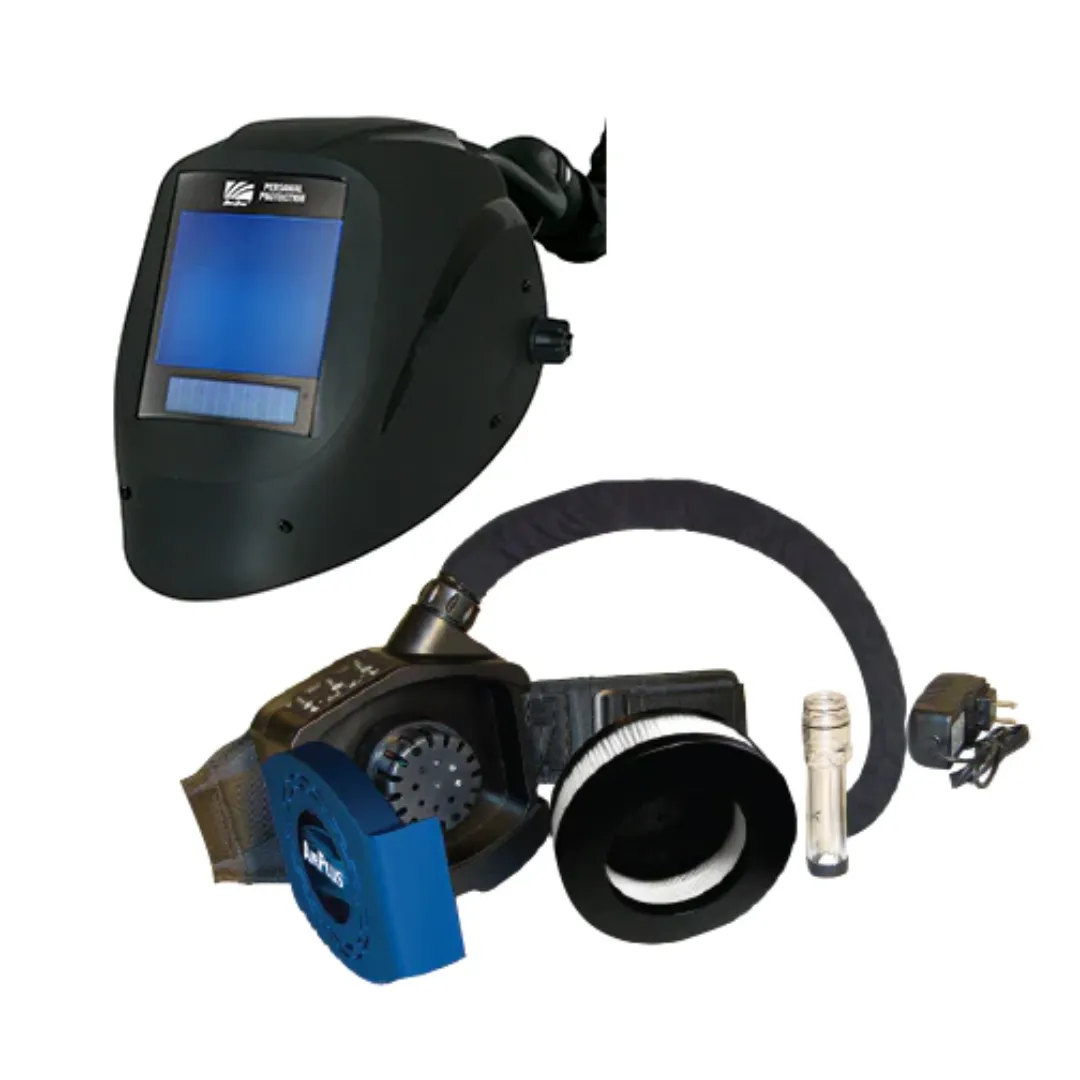

Kits Include:
- AirPlus Vision Helmet with either BFFVX Lens or X81VX Lens
- AirPlus® Powered Air Purifying System with HEPA Filter (AP-BLW-02)
- 1 Battery (AP-BAT-02)
- Battery Charger (AP-CHG-01)
- Waist Belt (AP-WBT-01)
- Breathing Tube w/ FR Cover (AP-BTC-01)
- Air Flow Indicator (AP-AFI-01)
- Duffle Bag (CA-CAC-02)
BFFVX Lens Specifications | X81VX Lens Specifications: |
• 17 Square Inch Viewing Area • Light State: 3, Dark State: 5-13 • Grind Mode • 2 Optical Sensors, 1 Magnetic Sensor |
• 12.6 Square Inch Viewing Area • Light State: 3, Dark State: 5-14 • Grind Mode • 4 Optical Sensors, 1 Magnectic |
|
