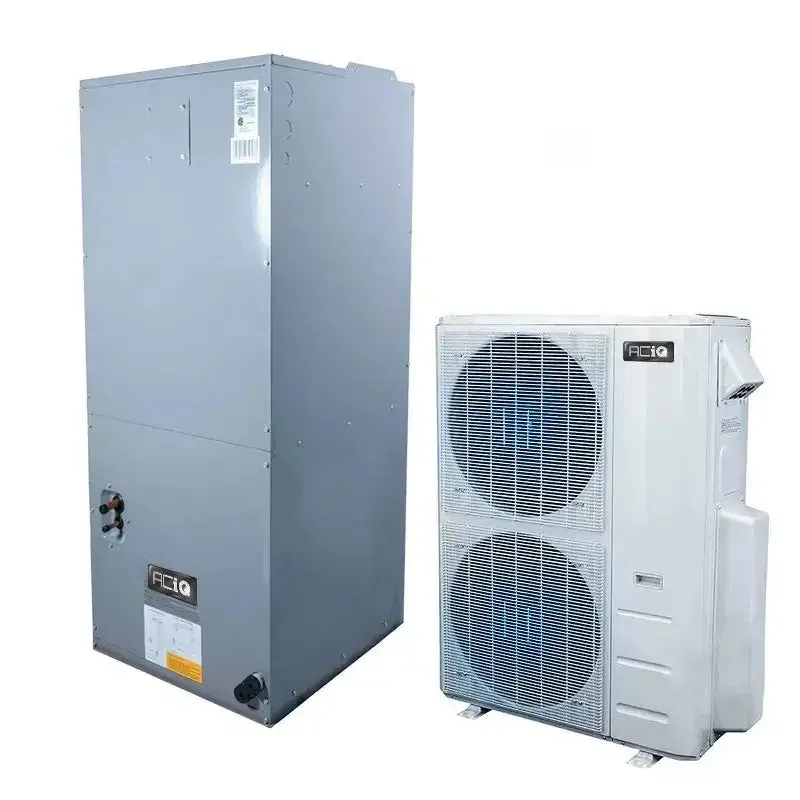

ACiQ 4 Ton 17.3 SEER High Efficiency Central Heat Pump System | Inverter - ACiQ-48-EHPB / ACiQ-48-AHB
ACiQ's Next Gen Heat Pump systems give you the best of both worlds – a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.
How is it different from a traditional heat pump?
- Traditional heat pumps rely on expensive heat strips below 30°F
- ACiQ Next Gen saves up to 75% in temps below 30°F
- Variable BTU Inverter ramps up and down to match demand
- Smart system with soft startups to maximize efficiency
- OK to size for heat – self adjusts to control humidity during cooling
- Extreme Heat technology keeps you warm to -22° and beyond

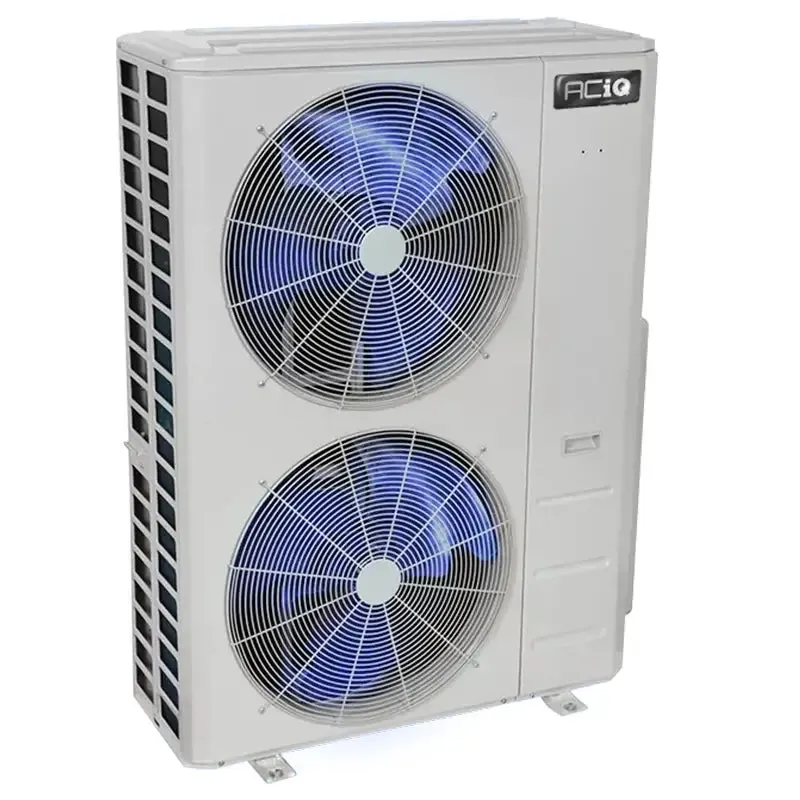

4 Ton 17.3 SEER ACiQ Central Heat & Air Inverter Condenser
With an efficiency rating of 15.8 SEER2, the variable output ACiQ-48-EHPB will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 48,000 BTU without short cycling.
Features:
- Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
- Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
- Size for Heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 4-ton heat pump system automatically adjusts to run like a 3-ton, 2-ton or a 1.5-ton to keep you cool and dry.
- Highest Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
-
Longer life, longer warranty: Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is protected by a manufacturer 7 years parts, 12 years compressor warranty.
Highlights:
- Programmable, communicating thermostat included
- Intelligent comfort at an affordable cost
- 48,000 BTU, 15.8 SEER2 heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads

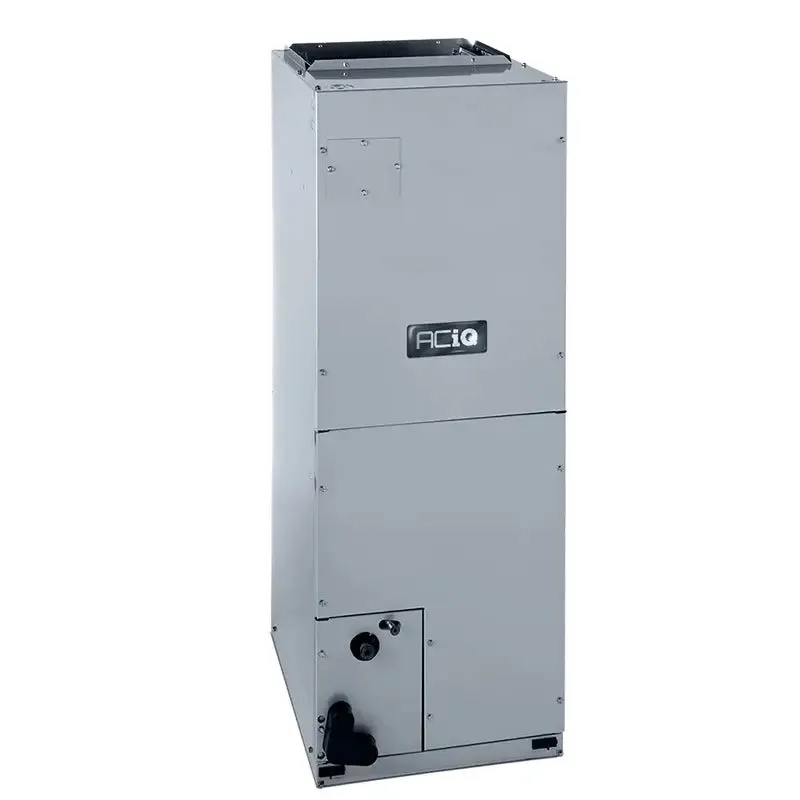

4 Ton ACiQ Central Air Handler
The ACiQ-48-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.
Features:
- 48,000 BTU, 4 ton central ducted air handler
- Wired smart thermostat included
- Or – use your preferred 24v thermostat
- Variable DC blower
- Upflow, dowflow, horizontal left or right
- Manufactured Home and mobile home approved
Installation and Maintenance
Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Next Gen Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.
Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.
What's Included:
- 1x 4 Ton 17.3 SEER ACiQ Central Heat & Air Inverter Condenser
- 1x 4 Ton ACiQ Central Air Handler
- 1x Free ACiQ Wired Programmable Thermostat ($119.99 Value)
Condenser Specifications:
| Brand | ACiQ |
| Model Number |
ACIQ-48-EHPB |
| Refrigerant Charge | 25' |
| Weight (in lbs) | 112.800000 |
| AHRI Certificate Number | 212394320 |
| HSPF | 10 |
| HSPF2 | 9.4 |
| Cooling BTU | 48,000 BTU |
| Heating BTU | 48,000 BTU |
| Maximum CFM | 4500 |
| Decibel Level (dBA) | 59 |
| Electric Heat | Heat Pump |
| Energy Star | No |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 17 |
| SEER2 (Efficiency) | 15.8 |
| EER | 9.3 |
| Compressor Type | Rotary |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 50 Amps |
| Min. Breaker Size | 34 Amps |
| Tonnage | 4 Ton |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Mini-Split Type | Multi-Positional |
| Min/Max Outdoor Temp for Heating | 5～75 |
| Min/Max Outdoor Temp for Cooling | 5～122 |
| Zone Compatibility | Single Zone |
| Height | 52.48" |
| Width | 37.48" |
| Depth | 16.34" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Proposition 65 Warning |
Yes |
Air Handler Specifications:
| Brand | ACiQ |
| Model Number |
ACiQ-48-AHB |
| Weight (in lbs) | 159.830000 |
| Cooling BTU | 48000 BTU |
| Heating BTU | 55000 BTU |
| Maximum CFM | 1282.35 |
| Decibel Level (dBA) | 53 |
| Electric Heat | Heat Pump |
| Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts, 15 Kilowatts, 20 Kilowatts |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 16-17 |
| EER | 8.5 |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 4.5 |
| System Tonnage | 4 Ton |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Mini-Split Type | Multi-Positional |
| Zone Compatibility | Single Zone |
| Height | 49.02" |
| Width | 21.02" |
| Depth | 21.02" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Proposition 65 Warning | Yes |
