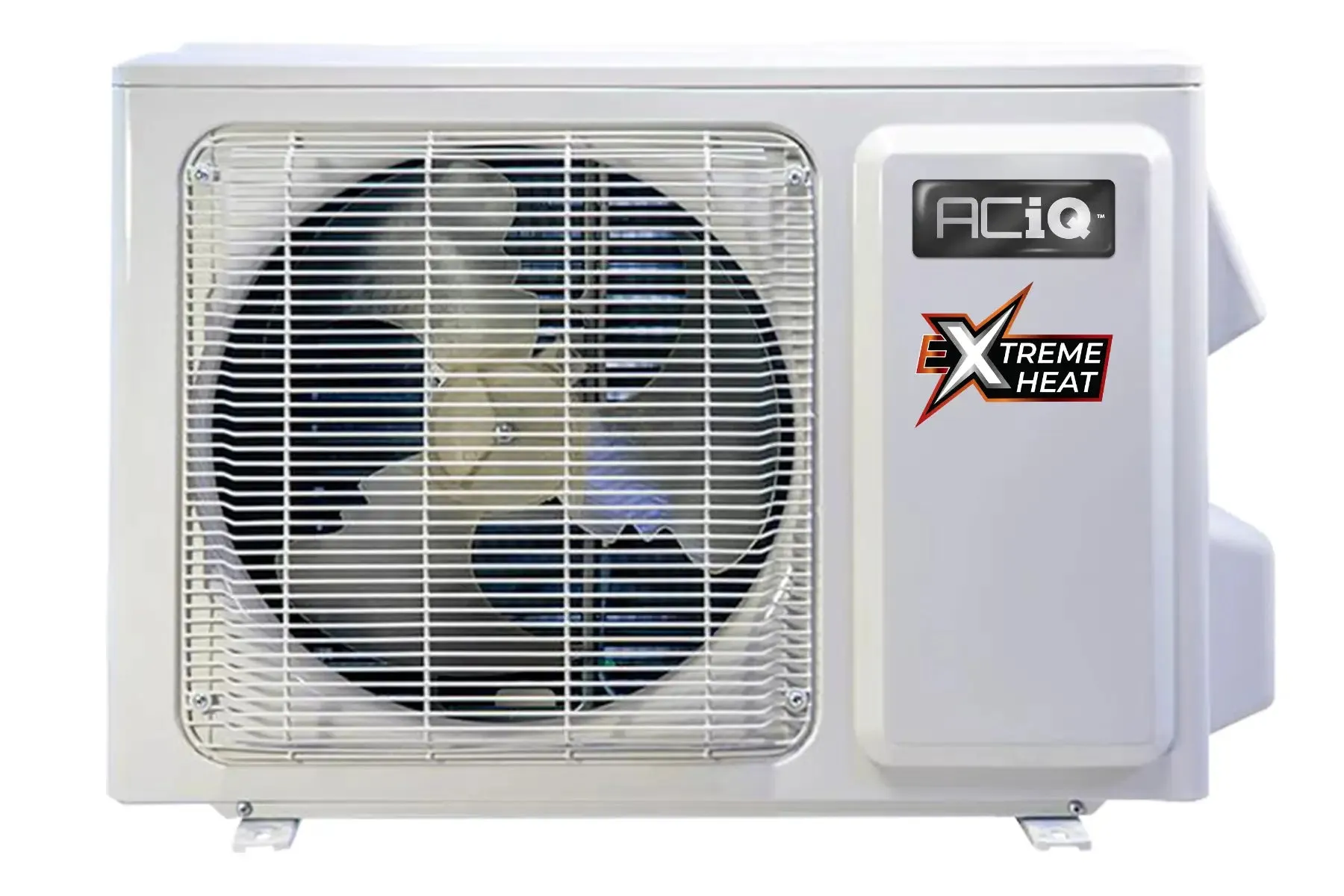

ACiQ 3 Ton 18 SEER High Efficiency Central Heat Pump | Inverter | Extreme Heat
With an efficiency rating of 16 SEER2, the variable output ACiQ-36-HPC will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 36,000 BTU without short cycling. For heating, this system is capable of 28,000 BTU at -22°F all the way up to 58,588 BTU at 50°F. This increased range means it fits more possible applications.
Features:
- Inverter Condenser: Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
- Learning system: This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
- Size for heat: The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 3-ton heat pump system automatically adjusts to run like a 2 ton or a 1 ton to keep you cool and dry.
- Extreme Heat Technology: Extreme Heat means extended temperature range heating all the way down to -22°F. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.
- Extreme Heat Base Pan Heater Technology: Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
- Highest Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
-
Longer life, longer warranty: Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is protected by a manufacture 7 years parts, 12 years compressor warranty.
Highlights:
- 12,000 BTU to 36,000 BTU variable output based on demand
- Inverter heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from -22°F to 85°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads
Condenser Specifications:
Brand | ACiQ |
Model Number |
ACiQ-36-HPC |
Refrigerant Charge | 25' |
Weight (in lbs) | 166.000000 |
AHRI Certificate Number | 213500937 |
HSPF | 10.4 |
HSPF2 | 9.5 |
Cooling BTU | 36000 BTU |
Heating BTU | 40000 BTU |
Maximum CFM | 1082.35 |
Decibel Level (dBA) | 64 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
SEER1 (Efficiency) | 18 |
SEER2 (Efficiency) | 16 |
EER | 10.5 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 35 Amps |
Min. Breaker Size | 30 Amps |
Tonnage | 3 Ton |
BTU/Tonnage | 36,000 BTU/3 Ton |
Mini-Split Type | Multi-Positional |
Min/Max Outdoor Temp for Heating | -22~75 |
Min/Max Outdoor Temp for Cooling | 5~122 |
Zone Compatibility | Single Zone |
Ambient Temperature Range | -22~122 |
Height | 31.89" |
Width | 37.24" |
Depth | 16.14" |
Warranty | 12 year compressor warranty with online registration |
Parts Warranty |
|
Resources |
|
