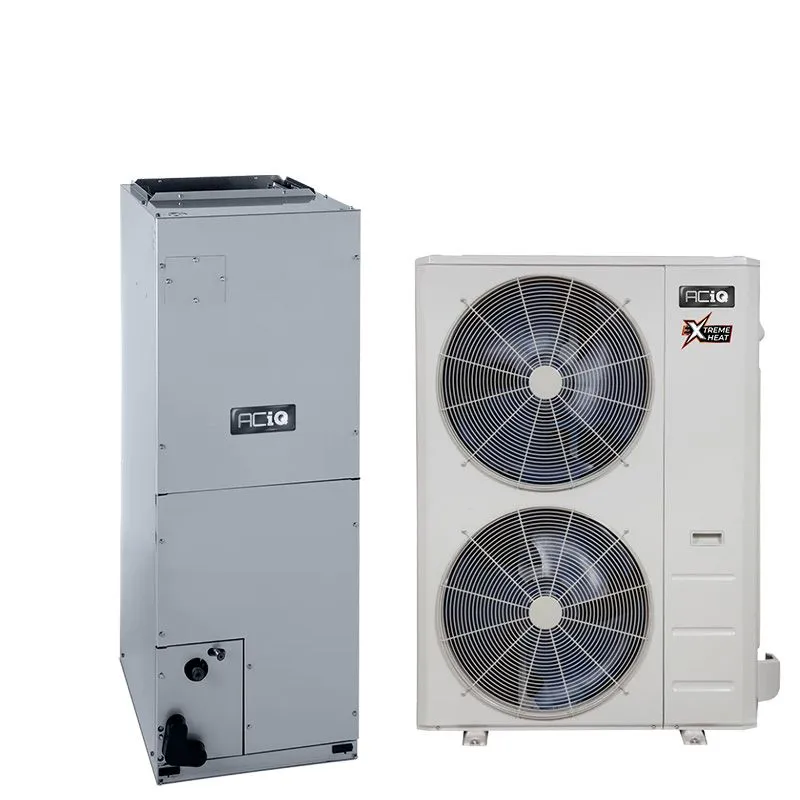

ACiQ 2.5 Ton 16.2 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme Heat​

ACiQ's Next Gen Heat Pump systems give you the best of both worlds - a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.

How is it different from a traditional heat pump?

• Traditional heat pumps rely on expensive heat strips below 30° F
• ACiQ Next Gen saves up to 75% in temps below 30° F
• Variable BTU Inverter ramps up and down to match demand
• Smart system with soft startups to maximize efficiency
• OK to size for heat - self adjusts to control humidity during cooling
• Extreme Heat technology keeps you warm to -22° F and beyond

ACiQ 2.5 Ton 16.9 SEER2 High Efficiency Central Heat Pump | Inverter | Extreme Heat​

Overview

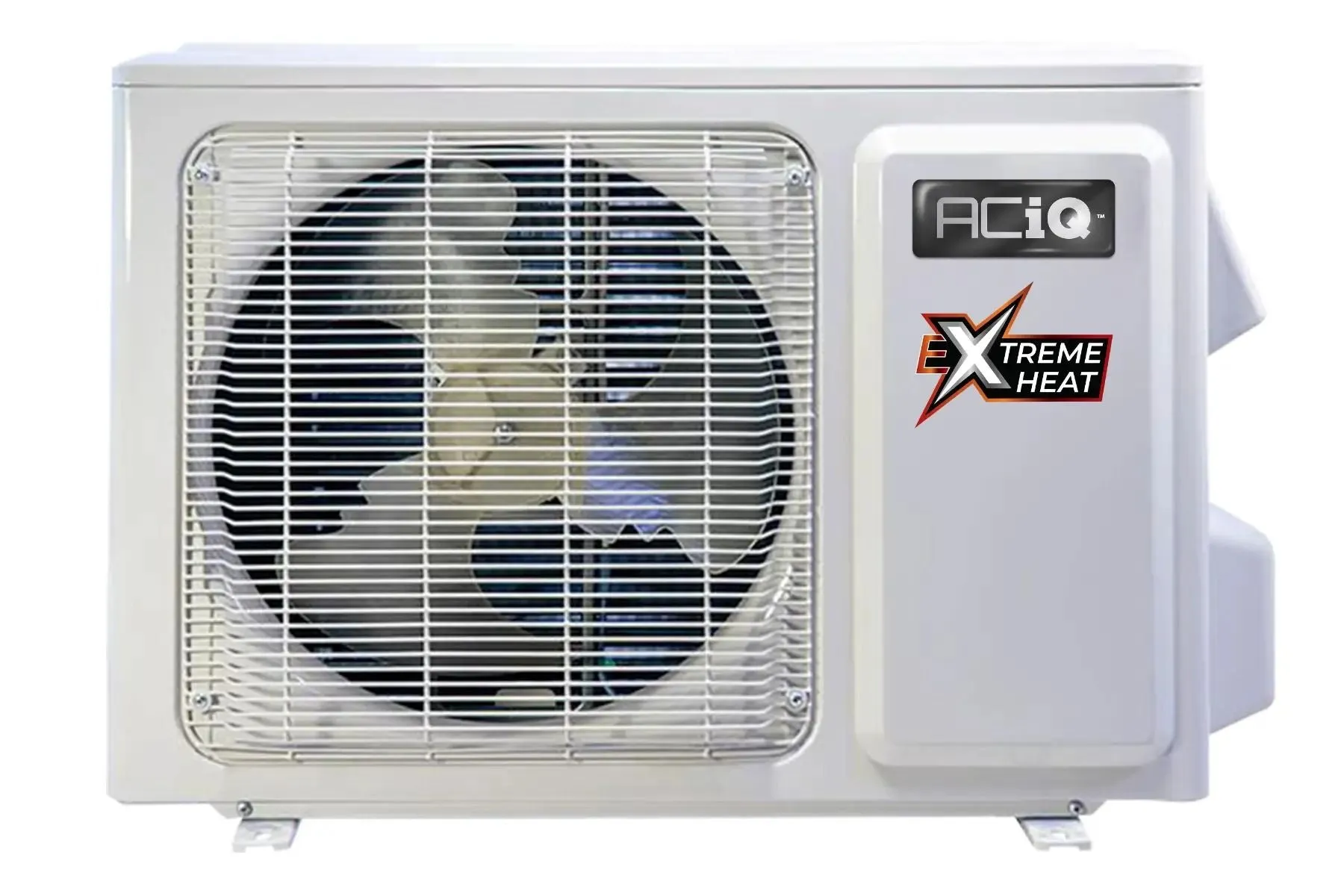

Inverter condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.

Learning system - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.

Size for heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 2.5-ton heat pump system automatically adjusts to run like a 1 ton to keep you cool and dry.

Extreme Heat Technology - Extreme Heat means extended temperature range heating all the way down to -22°. Traditional heat pumps don't make significant heat below about 30°F outside temperature, below that, they rely on expensive backup electric heat. The ACiQ Next Gen with Extreme Heat uses the inverter to vary the refrigerant flow, allowing for maximum heat extraction during extreme cold temperatures. The backup electric heat supplements the heat pump, and only takes over below -22°F. The heat pump gives 100% at 0°F, and still gives 80% at -22°F, saving you up to 75% on cold weather heating bills.

Quick Facts:

• Variable output based on demand
• Inverter heat pump system for use with ductwork
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Efficient heating from -22°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads

30,000 BTU, 16.9 SEER2

With an efficiency rating of 16.9 SEER2, the variable output ACiQ-30-HPB will keep you comfortable across a wide range of conditions.

Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.

Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is backed by ACiQ's 7 years parts, and 12 years compressor warranty.

2.5 Ton ACiQ Central Air Handler

Enhanced Comfort at Maximum Efficiency

The ACiQ-30-AHB air handler features a variable DC blower and communicating technology to maximize comfort and efficiency at the same time. The included smart thermostat communicates with the inverter condenser outside, and the variable air handler inside, allowing the system to self-adjust BTU output to maximize efficiency while providing ideal comfort. The air handler efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

• 30,000 BTU, 2.5 ton central ducted air handler
• Wired smart thermostat included
• Or – use your preferred 24v thermostat
• Variable DC blower
• Upflow, dowflow, horizontal left or right
• Manufactured Home and mobile home approved

Installation and Maintenance

Installation is very similar to installing any replacement air handler. Your technician will make electrical, refrigerant, thermostat and communication connections, plus, connect to your return and supply ductwork. The ACiQ Next Gen Air Handler is multi-positional (upflow, downflow or horizontal) and mobile-home approved. Any 24V thermostat with 2 stages of heating can control the system, although the supplied thermostat is recommended. You can add electric strip heat as a backup system for the coldest days of the year. The intelligent control board in the air handler displays fault codes in case part of the system requires maintenance.

Please note - in order to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.

Condenser Specifications:

Air Handler Specifications:
