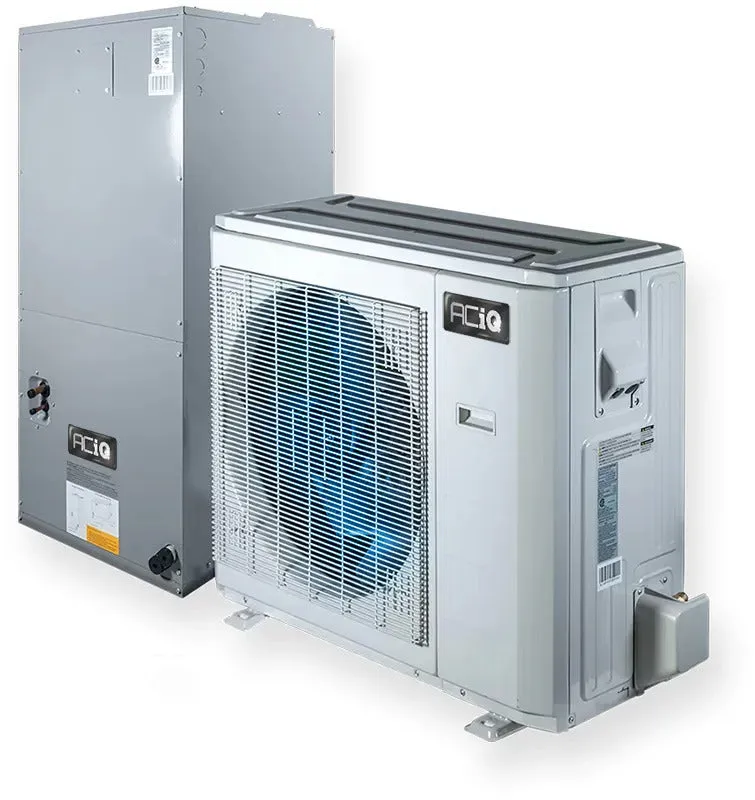

ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump System | Inverter - ACiQ-24-EHPB / ACiQ-24-AHB
ACiQ's Next Gen Heat Pump systems give you the best of both worlds; a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.
With an efficiency rating of 17.0 SEER2, the variable output ACiQ-24-EHPB will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 24,000 BTU without short cycling.
How is it different from a traditional heat pump?
- Variable BTU Inverter ramps up and down to match demand
- Smart system with soft startups to maximize efficiency
- OK to size for heat and will not short cycle during cooling
- Rated for efficient heating down to 5 degree outdoor temperatures
Features:
- Inverter Condenser: Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
- Learning System: This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
- Size for Heat: The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 2-ton heat pump system automatically adjusts to run like a 1 ton to keep you cool and dry.
- Highest Efficiency: ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
- Longer life, longer warranty: Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is protected by a manufacturer 7 years parts, 12 years compressor warranty.
Highlights:
- 12,000 BTU to 24,000 BTU variable output based on demand
- Inverter heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads
What's Included:
- 1x ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump | Inverter
- 1x 2 Ton ACiQ Central Air Handler
- 1x Free ACiQ Wired Programmable Thermostat ($119.99 Value)

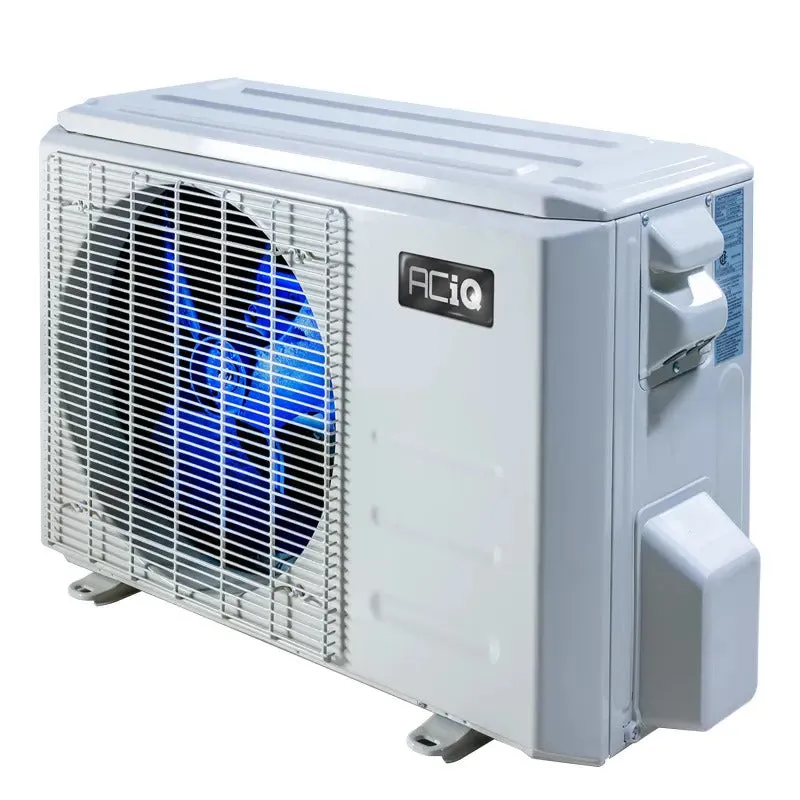

Condenser Specifications:
Brand | ACiQ |
Model Number |
ACiQ-24-EHPB |
Refrigerant Charge | 25' |
Weight (in lbs) | 109.130000 |
AHRI Certificate Number | 212394317 |
HSPF2 | 9.2 |
Cooling BTU | 24000 BTU |
Heating BTU | 24000 BTU |
Maximum CFM | 1765 |
Decibel Level (dBA) | 60 |
Electric Heat | Heat Pump |
Energy Star | No |
Refrigerant | R410A |
SEER1 (Efficiency) | 20 |
SEER2 (Efficiency) | 17 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 30 Amps |
Min. Breaker Size | 19 Amps |
Tonnage | 2 Ton |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini-Split Type | Multi-Positional |
Min/Max Outdoor Temp for Heating | 5~75 |
Min/Max Outdoor Temp for Cooling | 5~122 |
Zone Compatibility | Single Zone |
Height | 26.5" |
Width | 35.04" |
Depth | 13.46" |
Warranty | 12 year compressor, 7 year parts with online registration |
Proposition 65 Warning | Yes |
Air Handler Specifications:
Brand | ACiQ |
Model Number |
ACiQ-24-AHB |
Weight (in lbs) | 127.430000 |
AHRI Certificate Number | 208106635 |
HSPF | 11 |
Cooling BTU | 22000 BTU |
Heating BTU | 27000 BTU |
Maximum CFM | 882 |
Decibel Level (dBA) | 43 |
Electric Heat | Heat Pump |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts |
Energy Star | Yes |
Refrigerant | R410A |
SEER1 (Efficiency) | 18-20 |
EER | 12.5 |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 15 |
Min. Breaker Size | 4 |
System Tonnage | 2 Ton |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini-Split Type | Multi-Positional |
Zone Compatibility | Single Zone |
Height | 45" |
Width | 17.52" |
Depth | 21.02" |
Warranty | 12 year compressor, 7 year parts with online registration |
Proposition 65 Warning | Yes |
