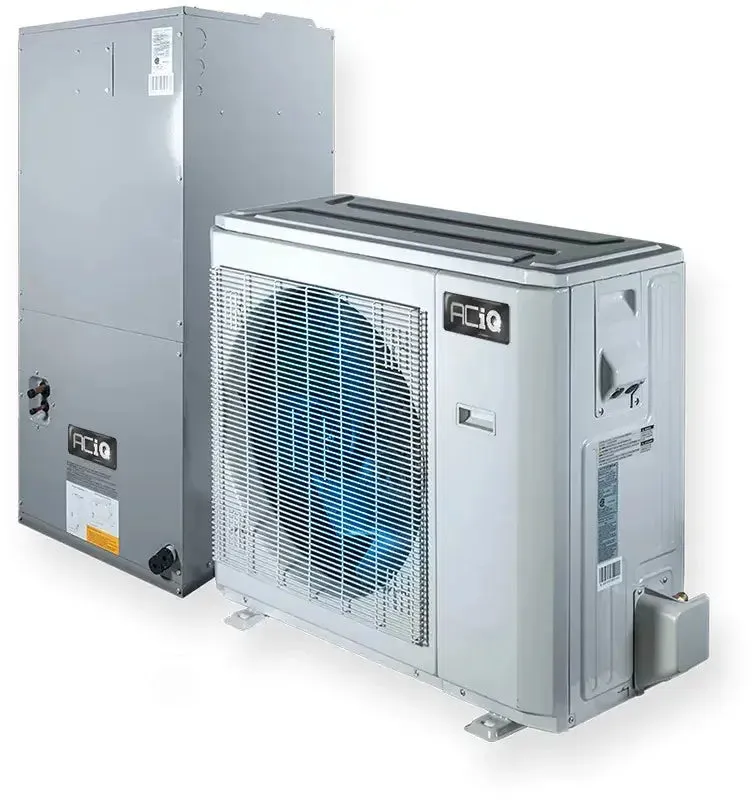

ACiQ 2 Ton 19.4 SEER High Efficiency Central Heat Pump System | Inverter
ACiQ's Next Gen Heat Pump systems give you the best of both worlds; a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.
How is it different from a traditional heat pump?
- Variable BTU Inverter ramps up and down to match demand
- Smart system with soft startups to maximize efficiency
- OK to size for heat and will not short cycle during cooling
- Rated for efficient heating down to 5 degree outdoor temperatures
Overview
Inverter Condenser - Inverter technology changes AC power to DC, allowing the compressor inside your condenser to speed up and slow down. This allows the system to self-adjust BTU output based on demand. As the weather changes, so will your system output.
Learning System - This system is packed with sensors and controls air temperature inside and outside, system performance, duct pressure, refrigerant temperature. The first time you start your system it enters a learning mode keeping air moving across the sensors and storing information so future startups and run cycles will be at max efficiency.
Size for Heat - The self-adjusting inverter design allows you to size your system based on heat demand. With standard heat pumps, sizing for heat can mean a muggy house during summer. The ACiQ Next Gen 2-ton heat pump system automatically adjusts to run like a 1 ton to keep you cool and dry.
Quick Facts
- 12,000 BTU to 24,000 BTU variable output based on demand
- Inverter heat pump system for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation at even the highest workloads
24,000 BTU, 19.4 SEER
With an efficiency rating of 19.4 SEER, the variable output ACiQ-24-EHPB will keep you comfortable across a wide range of conditions. For cooling, this system can operate anywhere from 12,000 BTU to 24,000 BTU without short cycling.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is backed by ACiQ's 7 years parts, and 12 years compressor warranty.
Condenser Specifications:
Manufacture | ACiQ |
SKU | ACiQ-24-EHPB |
Refrigerant Charge | 25' |
Weight | 109.130000 |
AHRI Certificate Number | 212394317 |
Product Features | Inverter, Rebate Available, Two Stage Condenser, Variable Speed Condenser |
HSPF2 | 9.2 |
Cooling BTU | 24000 BTU |
Heating BTU | 24000 BTU |
Maximum CFM | 1765 |
Decibel Level (dBA) |
60 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
SEER | 20 |
SEER2 |
17 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 5/8" |
Electrical | 208/230V 1 Phase 60Hz |
Max Breaker Size | 30 Amps |
Min. Breaker Size |
19 Amps |
Tonnage | 2 Ton |
BTU/Tonnage | 24,000 BTU/2 Ton |
Min/Max Outdoor Temp for Heating | 5 ~75 |
Min/Max Outdoor Temp for Cooling | 5~122 |
Zone Compatibility | Single Zone |
Length | 35.04" |
Height | 26.50" |
Depth | 13.46" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources |
|
Safety Information | Proposition 65 Warning |

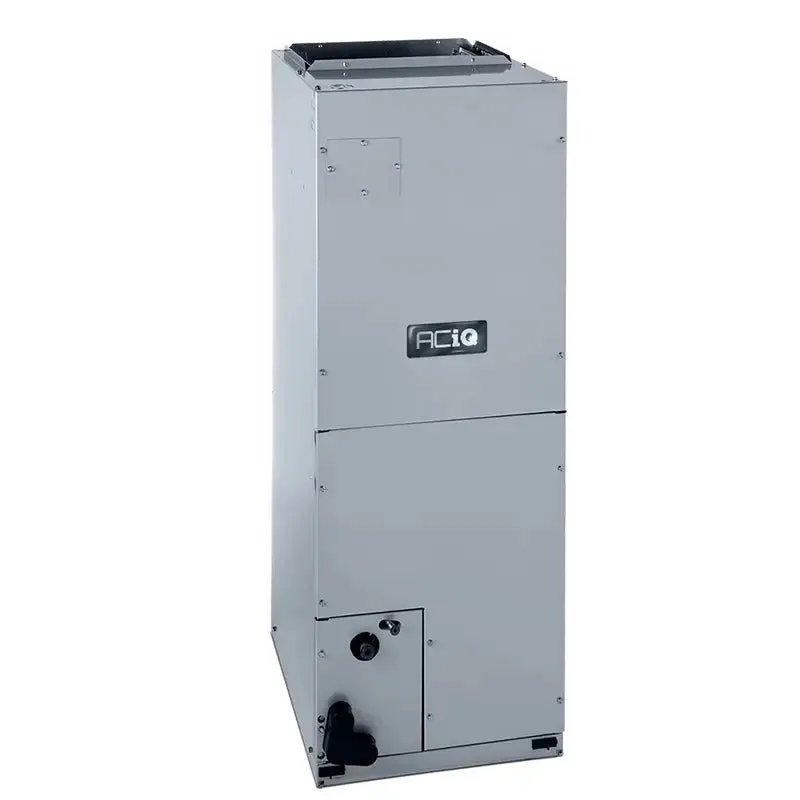

Air Handler Specifications:
Manufacture | ACiQ |
SKU | ACiQ-24-AHB |
Weight | 127.430000 |
AHRI Certificate Number | 208106635 |
HSPF | 11 |
Cooling BTU |
22000 BTU |
Heating BTU |
27000 BTU |
Maximum CFM | 882 |
Decibel Level (dBA) | 43 |
Electric Heat | Heat Pump |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts |
Energy Star | Yes |
Refrigerant | R410A |
SEER | 18-20 |
EER | 12.5 |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 15 |
Min. Breaker Size | 4 |
Tonnage Bundle | 2 Ton |
BTU/Tonnage | 24,000 BTU/2 Ton |
Mini Split Type | Multi-Positional |
Zone Compatibility | Single Zone |
Height |
45" |
Width | 17.52" |
Depth |
21.02" |
Warranty |
12 year compressor, 7 year parts with online registration |
Resources |
|
Safety Information | Proposition 65 Warning |
