ACiQ 1 Ton 17.5 SEER2 High Efficiency Central Heat Pump System | Inverter

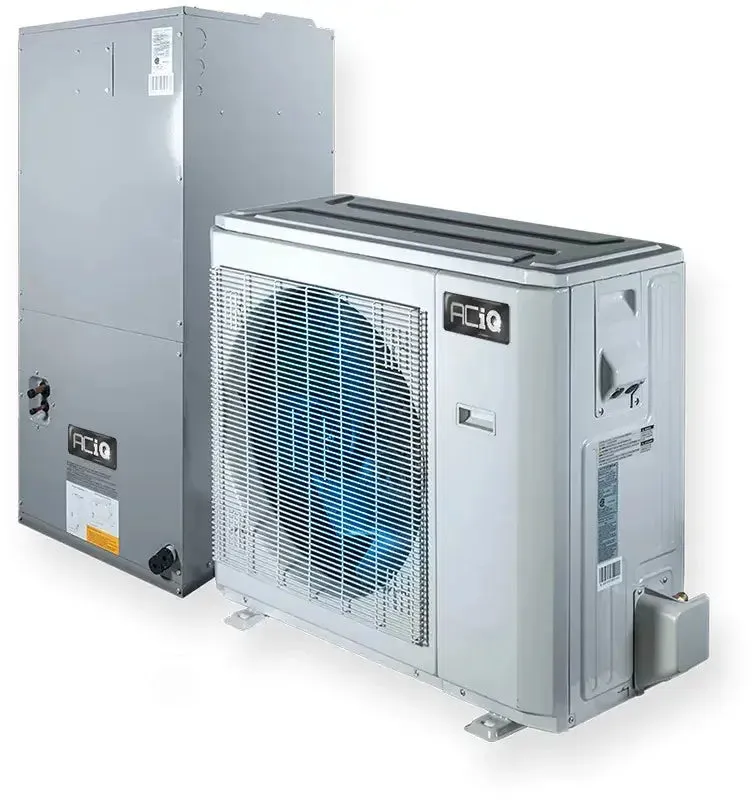

ACiQ’s High-Efficiency 1 Ton Heat Pump System, featuring the ACIQ-12-EHPB inverter condenser and ACIQ-12-AHB air handler, offers the perfect balance of smart inverter technology and seamless integration with your existing ductwork.
How is it different from a traditional heat pump?
- Variable BTU Inverter: Automatically adjusts output to match demand.
-
Smart system with soft startups: Maximizes efficiency and reduces energy waste.
-
Sized for heating: Allows you to size for heat without worrying about short cycling in cooling mode.
-
Rated for efficient heating: Operates down to 5°F outdoor temperatures.
Overview
Inverter Condenser: Inverter technology converts AC power to DC, allowing the compressor to speed up or slow down as needed, adjusting the BTU output to match weather conditions and demand, delivering energy savings and precise comfort.
Learning System: Packed with sensors that monitor air temperature, system performance, refrigerant levels, and duct pressure, this system learns from its environment, optimizing startup and run cycles for peak efficiency.
Size for Heat: The inverter design allows you to size the system based on heat demand, avoiding the risk of a muggy indoor climate during the summer. The 1-ton ACiQ-12 system adjusts its output dynamically, ensuring optimal comfort year-round.
Quick Facts
- 9,000 BTU to 12,000 BTU variable output based on demand
- High-efficiency inverter heat pump system designed for use with ductwork
- Efficient cooling from 5°F to 122°F outdoor temperatures
- Efficient heating from 5°F to 75°F outdoor temperatures
- Durable Gold Fin condenser coil coating
- Quiet operation, even at maximum capacity
9,000 BTU, 17.5 SEER2
With a 17.5 SEER2 rating, the variable output ACIQ-12-EHPB will keep your home comfortable across various conditions. Its output ranges from 9,000 to 12,000 BTU, ensuring efficient operation without short cycling.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Highest Efficiency
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. This system is backed by ACiQ's 7 years parts, and 12 years compressor warranty.

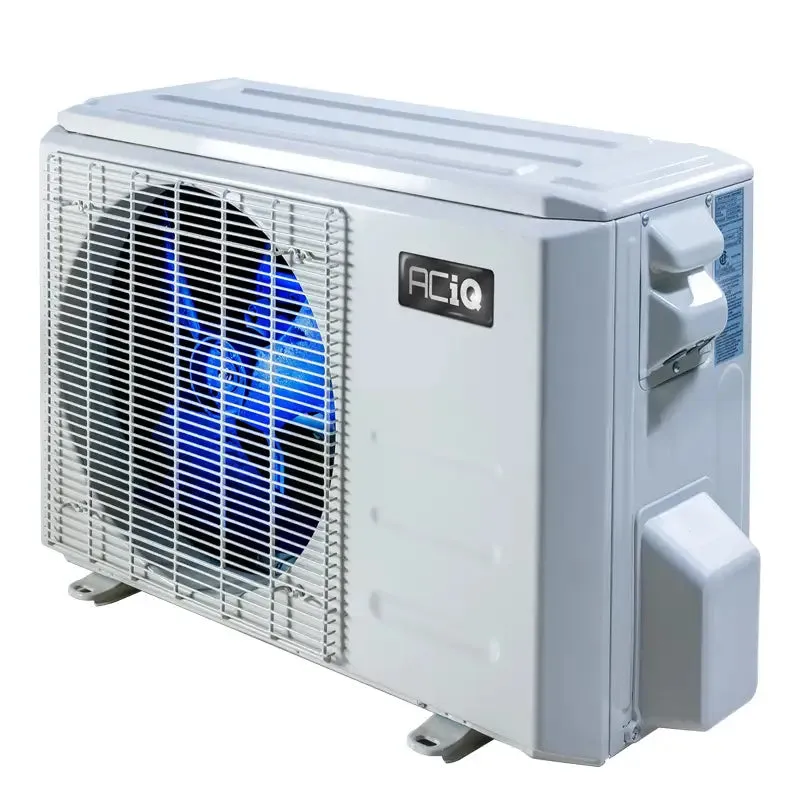

Condenser Specifications:
Manufacture | ACiQ |
SKU | ACIQ-12-EHPB |
Refrigerant Charge | 25' |
Weight | 109.130000 |
Product Features |
Inverter, Rebate Available, Two Stage Condenser, Variable Speed Condenser |
HSPF2 | 9 |
Cooling BTU | 12000 BTU |
Heating BTU | 13000 BTU |
Maximum CFM | 617.65 |
Decibel Level (dBA) | 34 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
SEER2 |
17.5 |
Compressor Type | Rotary |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230V 1 Phase 60Hz |
Max Breaker Size | 30 Amps |
Min. Breaker Size |
19 Amps |
Tonnage |
1.0 Ton |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini-Split Type | Multi-Positional |
Min/Max Outdoor Temp for Heating | 5 ~75 |
Min/Max Outdoor Temp for Cooling | 5~122 |
Zone Compatibility | Single Zone |
Height | 45" |
Width | 21.02" |
Depth | 17.52" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources |
|
Safety Information | Proposition 65 Warning |

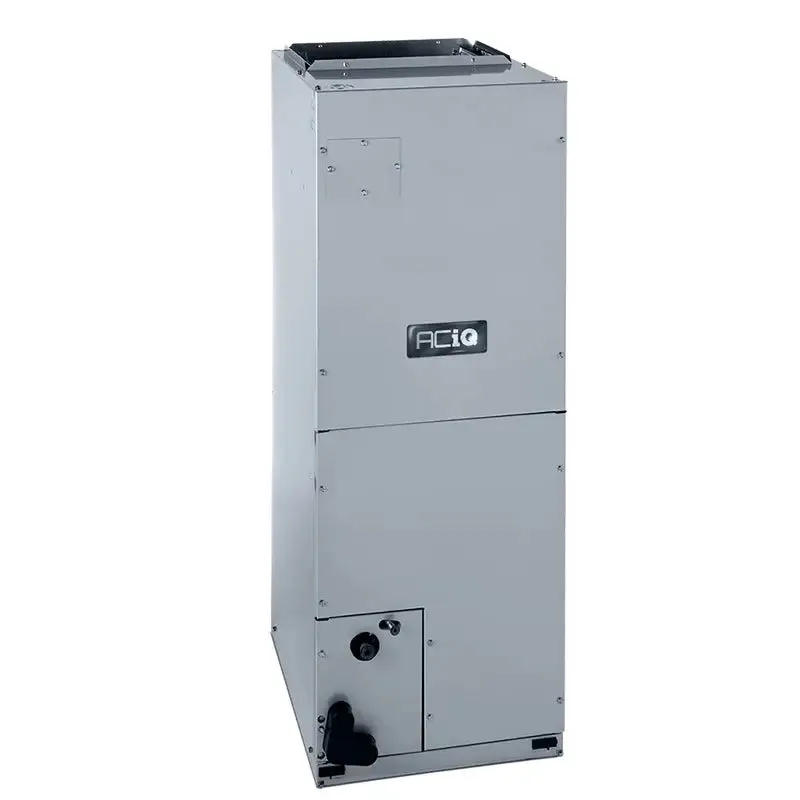

Air Handler Specifications:
Manufacture | ACiQ |
SKU | ACiQ-12-AHB |
Weight | 127.430000 |
AHRI Certificate Number | 208106635 |
HSPF | 9 |
Cooling BTU | 12000 BTU |
Heating BTU | 13000 BTU |
Maximum CFM | 1450 |
Decibel Level (dBA) |
52 |
Electric Heat | Heat Pump |
Electric Backup Heat Capabilities (Optional) | 5 Kilowatts, 10 Kilowatts |
Energy Star | Yes |
Refrigerant | R410A |
SEER | 17 |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 20 |
Min. Breaker Size | 16 |
Tonnage Bundle | 1 Ton |
BTU/Tonnage | 12,000 BTU/1 Ton |
Mini Split Type | Multi-Positional |
Zone Compatibility | Single Zone |
Height | 21.81" |
Width | 31.69" |
Depth |
12.99" |
Warranty |
12 year compressor, 7 year parts with online registration |
Resources |
|
Safety Information | Proposition 65 Warning |
